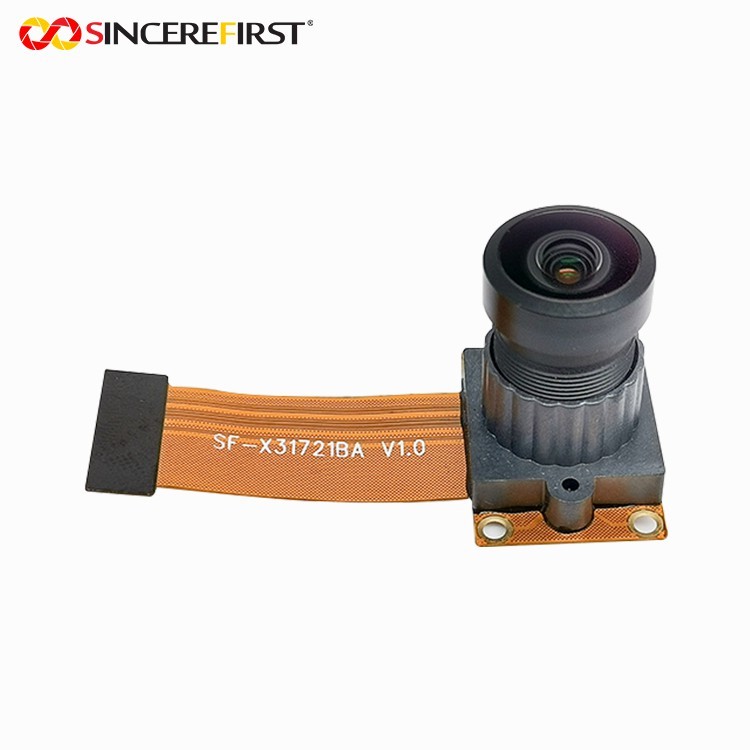

4K IMX317 Night Vision Camera Module Board Fingerprint Scanner

4K Sony IMX317 Color CMOS Fingerprint Scanner MIPI Camera Module Board


Specificaitons




Description

The IMX317CQC-C is a diagonal 7.20 mm (Type 1/2.5) CMOS image sensor with a color square pixel array and approximately 8.51 M effective pixels. 12-bit digital output makes it possible to output the signals of approximately 8.51 M effective pixels with high definition for shooting still pictures. It also operates with three power supply voltages: analog 2.8 V, digital 1.2 V, and 1.8 V for I/O interface and achieves low power consumption. Furthermore, it realizes 12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical addition and subsampling. Realizing high-sensitivity, low dark current, this sensor also has an electronic shutter function with variable storage time. In addition, this product is designed for use in consumer use digital still camera and consumer use camcorder. When using this for another application, Sony Semiconductor Solutions Corporation does not guarantee the quality and reliability of the product. Therefore, don't use this for applications other than consumer use digital still camera and consumer use camcorder. In addition, individual specification change cannot be supported because this is a standard product. Consult your Sony Semiconductor Solutions Corporation sales representative if you have any questions.


Features

◆CMOS active pixel type pixels
◆Input clock frequency 6 to 27 MHz (CSI-2), 12/24/36/72 MHz (Sub-LVDS)
◆Both MIPI Specifications (CSI-2 high-speed serial interface) and Sub-LVDS supported
◆All-pixel scan mode 12-bit, 10-bit Horizontal/vertical 2/2-line binning mode 12-bit, 10-bit Vertical 2/3 subsampling binning horizontal 3 binning mode Vertical 2/8 subsampling horizontal 3 binning mode
◆High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics
◆Vertical and horizontal arbitrary cropping function
◆Variable-speed shutter function (minimum unit: 1 horizontal period)
◆Low power consumption
◆High dynamic range (HDR) function: Digital overlap HDR
◆H driver, V driver and serial communication circuit on chip
◆CDS/PGA on chip: Gain +27 dB (step pitch 0.1 dB)
◆10-bit/12-bit A/D conversion on chip
◆R, G, B primary color mosaic filters on chip
◆All-pixel simultaneous reset supported
◆92-pin high-precision ceramic package
SCCB control interface for register programming


Applicaitons

robotics
artificial intelligence(AI)
IoT
surveillance
educational equipment
medical imaging
industrial automation
agritech
machine vision
computer vison
video meeting



IMX317 Night Vision Camera Module

4K Night Vision Camera Module

Camera Module Board Fingerprint Scanner

4K IMX317 Night Vision Camera Module Board Fingerprint Scanner Images
