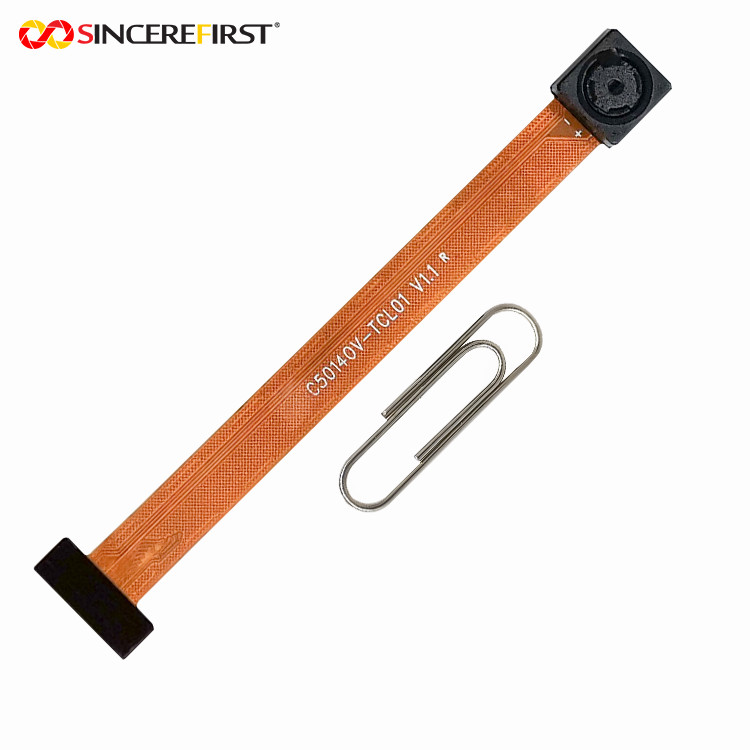

1/4" Fixed Focus Micro Cmos Camera Module DVP OV5640 5 Mega Pixel

Brand Name : SINCERE FIRST

Model Number : SF-A0V5640-TCL01

Certification : CE, FCC, RoHS, REACH, ISO

Place of Origin : Guangdong , China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, Western Union, T/T, MoneyGram, Paypal and Others

Supply Ability : 350000 pcs / month

Delivery Time : 7 - 15 Work Days

Packaging Details : Package, Carton Box

Sensor : OV5640

Glue : 8.0*8.0*0.1

Test connector : FH12-24S-0.5SH

Focusing Range : 10cm to Infinity

Focal Length : 3.37mm

F Number : 2.8

Fov(D) : 70°

TV Distortionce : <1%

Maximum exposure interval : 1964 x tROW

Max S/N ratio : 36 dB

Contact Now

1/4" Fixed Focus DVP OV5640 5 Mega Pixel HD Full CMOS Camera Module





Specificaitons



Interface ‎DVP
Focus range 10cm to ifinity
Output format YUV output
TV Distortionce <1%
Warranty 10 years
Application Outdoor, Indoor
AVDD 2.8V
DVDD 1.5V
DOVDD 1.8V
Glue 8.0*8.0*0.1





Description



This SincereFirst camera module is based on OmniVision OV5640 CMOS Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.





Features



◆2592*1944 resolution, high quality image sensor
◆DVP / MIPI interface
◆Electronic rolling shutter
◆Fixed / Auto focus
◆Fully customizable





Applicaitons



smartphones

tablets

PC multimedia

embedded system

robotics

drones

medical equipment

artificial intelligence
